What Are Flange Bolts and Why Are They Important in Mechanical Assemblies?

Flange bolts are specialized fasteners designed with an integrated flange—a wide, washer-like base—beneath the bolt head. This design provides a larger surface area for load distribution and eliminates the need for a separate washer, making flange bolts essential in many mechanical and structural applications.

What Is a Flange Bolt?

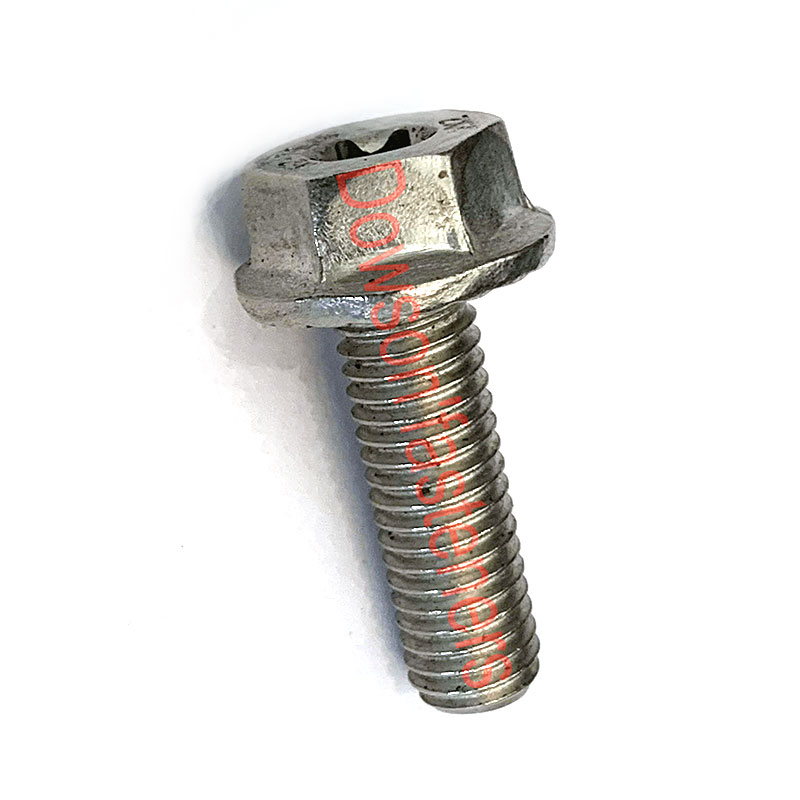

A flange bolt is a bolt that has a built-in flange at the head, which acts like a washer to spread the clamping force over a larger area. This helps prevent damage to the surfaces being fastened and improves the bolt’s holding power.

Types and Materials

Flange bolts come in various types, including:

Hex Flange Bolts: The most common type, with a hexagonal head for use with wrenches.

Serrated Flange Bolts: Feature serrations on the flange surface to prevent loosening caused by vibration.

Metric and Imperial Sizes: Available in different diameters and lengths to suit specific needs.

Materials often include stainless steel, carbon steel, alloy steel, and sometimes coated or plated for corrosion resistance.

Advantages of Flange Bolts

Improved Load Distribution: The flange spreads clamping force evenly, reducing stress on the joint.

Time-Saving: No need to use separate washers, simplifying assembly.

Vibration Resistance: Serrated flange bolts reduce loosening in vibrating environments.

Enhanced Grip: Flange design improves bolt stability and reduces slippage.

Versatility: Suitable for automotive, machinery, construction, and structural applications.

Common Applications

Automotive Industry: Securing engine components, chassis parts, and suspension systems.

Machinery and Equipment: Used in assembly lines and heavy machinery.

Construction: Fastening steel structures and metal frameworks.

Electrical Equipment: Mounting panels and enclosures.

Installation Tips

Use the correct torque to avoid over-tightening or under-tightening.

Inspect flange surfaces for damage to ensure proper contact.

Choose bolts with appropriate material and coating for environmental conditions.

Conclusion

Flange bolts offer a reliable and efficient fastening solution by combining the functions of a bolt and washer in one component. Their ability to distribute load and resist vibration makes them indispensable in many industrial applications.
