Types of Duplex Steel Flanges

2024-07-09

Duplex steel flanges are essential components used in piping systems to connect pipes, valves, pumps, and other equipment. Made from duplex stainless steel, these flanges offer a combination of excellent mechanical properties and high corrosion resistance, making them suitable for various demanding applications. Here’s a detailed overview of duplex steel flanges, including their types, advantages, and applications:

Key Features of Duplex Steel

1. Composition

  - Duplex Stainless Steel: Contains approximately equal proportions of austenite and ferrite phases.

  - Common Grades: Duplex 2205 (UNS S31803/S32205), Super Duplex 2507 (UNS S32750/S32760).

2. Mechanical Properties

  - High Strength: Higher tensile and yield strength compared to austenitic and ferritic stainless steels.

  - Good Toughness: Maintains toughness even at low temperatures.

3. Corrosion Resistance

  - Resistance to Pitting and Crevice Corrosion: Excellent resistance to chloride-induced corrosion.

  - Stress Corrosion Cracking Resistance: Better resistance to stress corrosion cracking (SCC) than austenitic steels.

  - General Corrosion Resistance: Performs well in acidic and alkaline environments.

Types of Duplex Steel Flanges

1. Weld Neck Flange

  - Description: Has a long tapered hub and is welded to the pipe.

  - Benefit: Provides high strength and is ideal for high-pressure applications.

2. Slip-On Flange

  - Description: Slips over the pipe and is then welded in place.

  - Benefit: Easier to align and install, suitable for low-pressure applications.

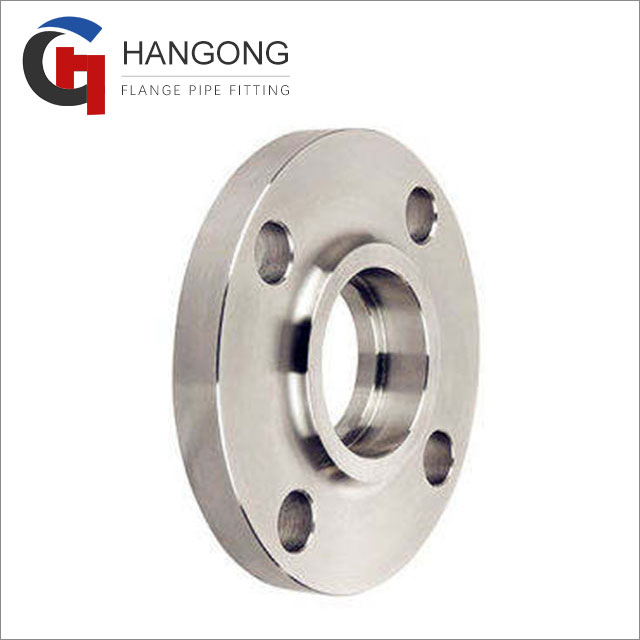

3. Socket Weld Flange

  - Description: The pipe is inserted into a socket and then welded.

  - Benefit: Provides a smooth bore and better flow characteristics.

4. Blind Flange

  - Description: Used to close the end of a piping system.

  - Benefit: Allows for easy access to the system for maintenance and inspection.

5. Lap Joint Flange

  - Description: Used with a stub end, the flange is not welded to the pipe.

  - Benefit: Suitable for systems requiring frequent dismantling for inspection or cleaning.

6. Threaded Flange

  - Description: Screwed onto the pipe without welding.

  - Benefit: Suitable for low-pressure and non-critical applications.

7. Reducing Flange

  - Description: Used to connect pipes of different diameters.

  - Benefit: Eliminates the need for a separate reducer fitting.

Advantages of Duplex Steel Flanges

1. High Strength and Durability

  - Explanation: Combines the strengths of both austenitic and ferritic stainless steels.

  - Result: Suitable for high-pressure and high-stress applications.

2. Excellent Corrosion Resistance

  - Explanation: High resistance to various forms of corrosion, including pitting, crevice corrosion, and stress corrosion cracking.

  - Result: Ideal for harsh environments such as marine, chemical, and petrochemical industries.

3. Cost-Effective

  - Explanation: The higher strength-to-weight ratio means less material is needed to achieve the same strength.

  - Result: Lower material and installation costs compared to other stainless steels.

4. Versatility

  - Explanation: Available in various types and sizes to suit different applications.

  - Result: Can be used in a wide range of industries and applications.

5. Longevity

  - Explanation: High durability and corrosion resistance lead to a longer service life.

  - Result: Reduced maintenance and replacement costs.

Applications of Duplex Steel Flanges

1. Oil and Gas Industry

  - Use Case: Piping systems for onshore and offshore applications, including platforms, refineries, and processing plants.

  - Reason: High strength and corrosion resistance in chloride-rich environments.

2. Chemical and Petrochemical Industry

  - Use Case: Transporting corrosive chemicals and gases.

  - Reason: Excellent resistance to various corrosive media.

3. Marine Industry

  - Use Case: Shipbuilding, offshore structures, and desalination plants.

  - Reason: High resistance to seawater corrosion and biofouling.

4. Power Generation

  - Use Case: Piping systems in nuclear and thermal power plants.

  - Reason: Ability to withstand high temperatures and pressures.

5. Pulp and Paper Industry

  - Use Case: Processing equipment and piping systems.

  - Reason: Resistance to corrosive chemicals used in the pulping process.

6. Water Treatment

  - Use Case: Desalination plants, wastewater treatment facilities, and potable water systems.

  - Reason: Corrosion resistance and longevity in both freshwater and saltwater environments.

Conclusion

Duplex steel flanges offer a robust solution for various industrial applications requiring high strength, excellent corrosion resistance, and durability. Their versatility and cost-effectiveness make them a preferred choice in industries such as oil and gas, chemical processing, marine, and power generation. When selecting duplex steel flanges, consider the specific requirements of your application, including pressure ratings, environmental conditions, and compatibility with existing piping systems.
