Information about Brass Threaded Fittings

Brass threaded fittings are widely used components in piping systems to connect, control, and redirect the flow of liquids and gases. Made from brass, these fittings are known for their durability, corrosion resistance, and ease of installation. Here’s a comprehensive overview:

Key Features:

1. Material:

  - Brass Composition: Typically made from a mixture of copper and zinc, brass provides strength, corrosion resistance, and machinability.

  - Alloys: Commonly used alloys include C36000 (free-cutting brass) and C38500 (leaded brass), depending on the application and requirements.

2. Threading:

  - Types: Available in various threading standards such as NPT (National Pipe Thread), BSP (British Standard Pipe), and BSPT (British Standard Pipe Tapered).

  - Thread Pattern: Provides a tight and secure connection between fittings, preventing leaks and ensuring proper flow.

3. Design:

  - Types: Includes a range of designs such as elbows, tees, couplings, reducers, and plugs, allowing for versatile configurations in piping systems.

  - Finish: Often polished or coated to enhance appearance and provide additional protection against corrosion.

4. Sizes:

  - Range: Available in various sizes to accommodate different pipe diameters and system requirements.

  - Custom Sizes: Custom sizes and configurations may be available based on specific needs.

Applications:

1. Plumbing: Used in residential and commercial plumbing systems for water supply and drainage.

2. Industrial: Applied in industrial piping systems for transporting gases, liquids, and chemicals.

3. HVAC: Utilized in heating, ventilation, and air conditioning systems for connecting and controlling various components.

4. Automotive: Employed in automotive systems for fluid and gas connections.

Benefits:

1. Corrosion Resistance: Brass resists corrosion and tarnishing, making it suitable for various environments.

2. Strength: Provides high strength and durability, ensuring reliable performance under pressure.

3. Machinability: Easy to machine and thread, allowing for precise manufacturing and custom designs.

4. Leak-Proof: Ensures a secure and leak-proof connection when properly installed.

Types of Brass Threaded Fittings:

1. Elbows:

  - Purpose: Used to change the direction of the pipe, typically at 45° or 90° angles.

  - Types: Available in various angles and sizes.

2. Tees:

  - Purpose: Allows for a branch connection off the main pipe, forming a T-shape.

  - Types: Includes equal tees and reducing tees.

3. Couplings:

  - Purpose: Joins two pipes of the same diameter together.

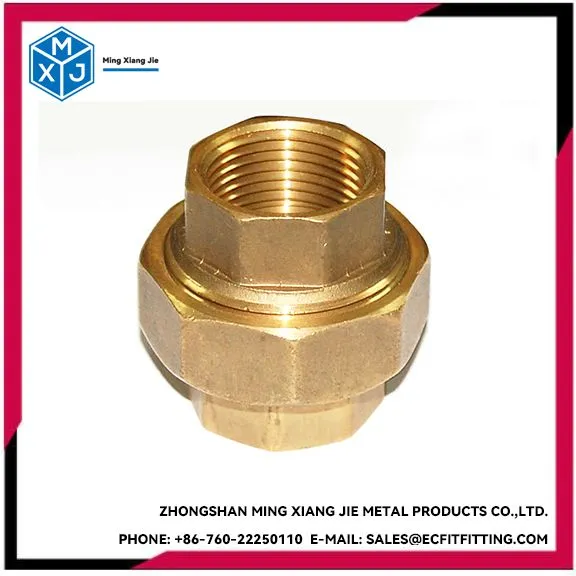

  - Types: Includes straight couplings and union couplings.

4. Reducers:

  - Purpose: Connects pipes of different diameters, reducing or increasing the pipe size.

  - Types: Includes concentric reducers and eccentric reducers.

5. Plugs and Caps:

  - Purpose: Closes the end of a pipe or fitting, often used for maintenance and testing.

  - Types: Includes threaded plugs and caps.

6. Adapters:

  - Purpose: Connects pipes or fittings with different threading standards or sizes.

  - Types: Includes male-to-female adapters and reducing adapters.

Installation and Maintenance:

1. Proper Threading: Ensure that threads are clean and undamaged before installation. Use thread sealant or tape as needed to prevent leaks.

2. Torque Specifications: Follow recommended torque specifications to avoid over-tightening, which can cause damage or leaks.

3. Inspection: Regularly inspect fittings for signs of wear, corrosion, or leaks and replace as necessary.

4. Cleaning: Keep fittings clean and free from debris to maintain proper function and appearance.

Selection Considerations:

- Thread Standard: Ensure compatibility with the threading standard used in your piping system (e.g., NPT, BSP).

- Size and Type: Choose fittings based on the required pipe size and the type of connection needed.

- Application: Consider the specific application and environment to select the appropriate brass alloy and fitting design.

Brass threaded fittings are essential components in various piping systems, offering strength, durability, and reliability. Proper selection, installation, and maintenance are crucial for ensuring effective and leak-free connections.
