Features and applications of high voltage resistors

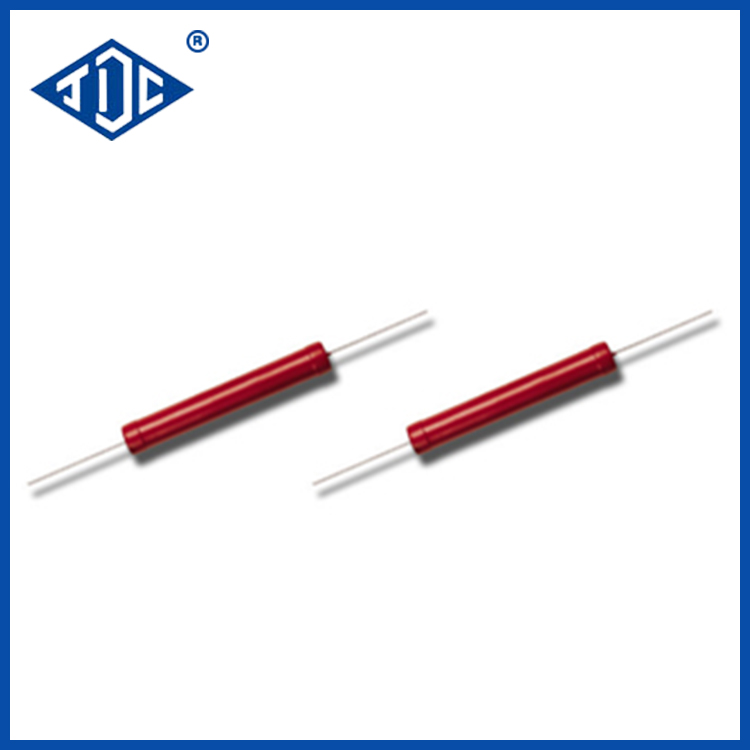

A high voltage resistor is an electronic component designed to withstand and control high voltage levels in electrical circuits. These resistors are specifically designed to operate under conditions of elevated voltage without breaking down or failing. High voltage resistors are used in various applications, including power distribution, industrial equipment, electronics, and testing and measurement instruments. Here are some key features and applications of high voltage resistors:

Key Features:

1. High Voltage Rating: High voltage resistors are designed to handle voltage levels significantly higher than those of standard resistors. They are built to withstand electrical stress without breakdown.

2. Resistance Value: These resistors provide a specific resistance value, and their resistance may be fixed or adjustable, depending on the application.

3. Power Rating: The power rating of high voltage resistors determines how much power they can safely dissipate without overheating or damage. It is essential to select a resistor with the appropriate power rating for the application.

4. Tolerance: High voltage resistors have a specified tolerance that indicates the range within which the actual resistance may vary from the specified value. Common tolerances are ±1% and ±5%.

5. Temperature Coefficient: They often have a low temperature coefficient, meaning their resistance value changes only slightly with temperature variations.

6. Stability: High voltage resistors offer good long-term stability and reliability, with minimal drift in their resistance value over time.


1. High Voltage Power Supplies: High voltage resistors are used in high voltage power supplies to set voltage levels and control current in various applications, such as electron microscopes and particle accelerators.

2. High Voltage Dividers: They are employed in voltage dividers to measure high voltage levels with reduced risk of electrical breakdown.

3. Industrial Equipment: High voltage resistors are found in industrial equipment, such as plasma cutting machines, X-ray generators, and high-voltage testing equipment.

4. Medical Equipment: They are used in medical devices, including radiography and radiation therapy equipment, where high voltage control is necessary.

5. Power Distribution: High voltage resistors play a role in power distribution systems to control voltage levels and maintain grid stability.

6. Electrostatic Precipitators: They are used in electrostatic precipitators to charge and collect particulate matter from gas streams in industrial applications.

7. Pulse Power Applications: High voltage resistors can be used in pulse power applications, such as in pulsed lasers, radar systems, and high-energy physics experiments.

8. Electrostatic Discharge (ESD) Protection: They may be used for ESD protection in electronic circuits and components to prevent damage from electrostatic discharge.

High voltage resistors are essential components in applications where the ability to control and manage high voltage levels is critical. Selecting the appropriate high voltage resistor for a specific application is important to ensure safe and reliable operation, as well as to prevent electrical breakdown and potential damage to equipment or circuits.
