Detailed description of Non Sandard Hose Fittings

2024-06-28

Non-standard hose fittings are customized or specialized connectors used in various applications where conventional, off-the-shelf hose fittings do not meet the specific requirements. These fittings are designed to accommodate unique configurations, sizes, materials, and performance needs. Here is a detailed description:

Components and Design:

1. Custom Threads: Non-standard hose fittings can be designed with custom thread types or sizes that do not conform to standard thread specifications. This includes unique pitches, diameters, or thread profiles.

2. Specialized Ends: These fittings can have ends that are tailored to fit non-standard hose sizes or connection types. This may include flared, crimped, or swaged ends.

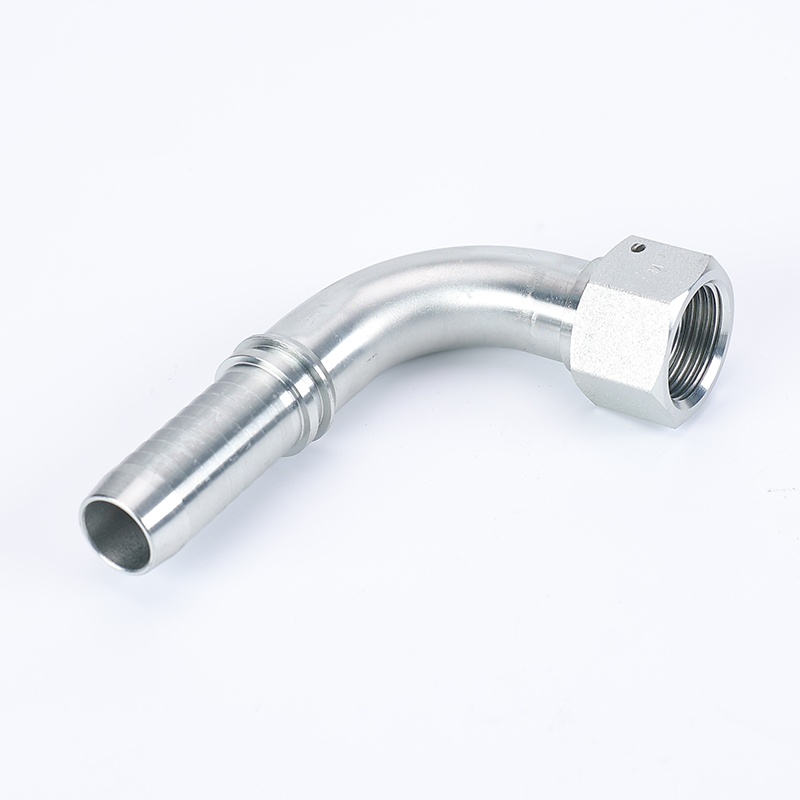

3. Custom Shapes: Non-standard fittings can be manufactured in various shapes such as elbows, tees, crosses, or any other configuration required to fit unique system layouts.

4. Materials: They can be made from a variety of materials to suit specific environmental or operational conditions. Common materials include stainless steel, brass, aluminum, and various plastics or composites.

5. Seals and O-rings: Non-standard fittings often incorporate custom seals or O-rings to ensure leak-proof connections. These seals can be made from materials compatible with the fluids being transported.

6. Reinforcements: They may include additional reinforcements like collars or sleeves to enhance strength and durability, especially in high-pressure or high-vibration applications.

Types of Non-Standard Hose Fittings:

1. Adapters: Custom adapters connect different hose types or sizes that would not normally fit together.

2. Reducers/Expanders: These fittings change the diameter of the hose connections, either reducing or expanding the flow path.

3. Swivel Joints: Allow for rotational movement between connected hoses to accommodate dynamic systems.

4. Quick Disconnects: Custom quick disconnects facilitate easy and rapid connection and disconnection in unique configurations.

5. Special Purpose Fittings: Includes fittings designed for specific applications like chemical processing, food and beverage, medical devices, or hydraulic systems.

Applications:

1. Industrial Machinery: Used in custom machinery where standard fittings cannot meet the unique requirements of the equipment.

2. Automotive: Custom fittings for fuel lines, brake systems, or hydraulic systems in specialized or modified vehicles.

3. Aerospace: Used in aircraft systems where standard fittings do not meet the stringent requirements for size, weight, or performance.

4. Medical Equipment: Custom fittings in medical devices where precise control over fluid flow is critical.

5. Chemical Processing: In plants where standard fittings do not provide the necessary resistance to aggressive chemicals or high temperatures.

6. HVAC Systems: Custom fittings for heating, ventilation, and air conditioning systems that require unique configurations.

Advantages:

1. Flexibility: Can be designed to meet specific needs that standard fittings cannot fulfill.

2. Performance: Tailored to provide optimal performance under specific conditions, such as high pressure, temperature, or corrosive environments.

3. Integration: Facilitate the integration of different systems or components that use non-standard sizes or configurations.

4. Durability: Often designed to be more robust than standard fittings to withstand unique operational stresses.

Considerations:

1. Cost: Custom fittings can be more expensive than standard fittings due to the specialized manufacturing process.

2. Lead Time: Longer lead times may be required for design, manufacturing, and delivery.

3. Compatibility: Ensure that custom fittings are compatible with the hoses and systems they are intended to connect.

4. Specifications: Detailed specifications and requirements must be provided to the manufacturer to ensure the custom fitting meets the necessary criteria.

Maintenance:

1. Regular Inspection: Check for wear, corrosion, or damage, especially in high-stress applications.

2. Cleaning: Ensure fittings are kept clean, especially in applications where contamination can affect performance.

3. Replacement: Non-standard fittings should be replaced periodically based on usage and wear to maintain system integrity.

4. Documentation: Maintain detailed records of custom fittings to facilitate reordering or replacement.

Non-standard hose fittings are crucial in applications where standard fittings are inadequate. Their custom design and manufacturing ensure that they meet the specific needs of various industries, providing reliable and efficient connections.
