Detailed description of Hollow Cup Brushed Motor

2024-06-29

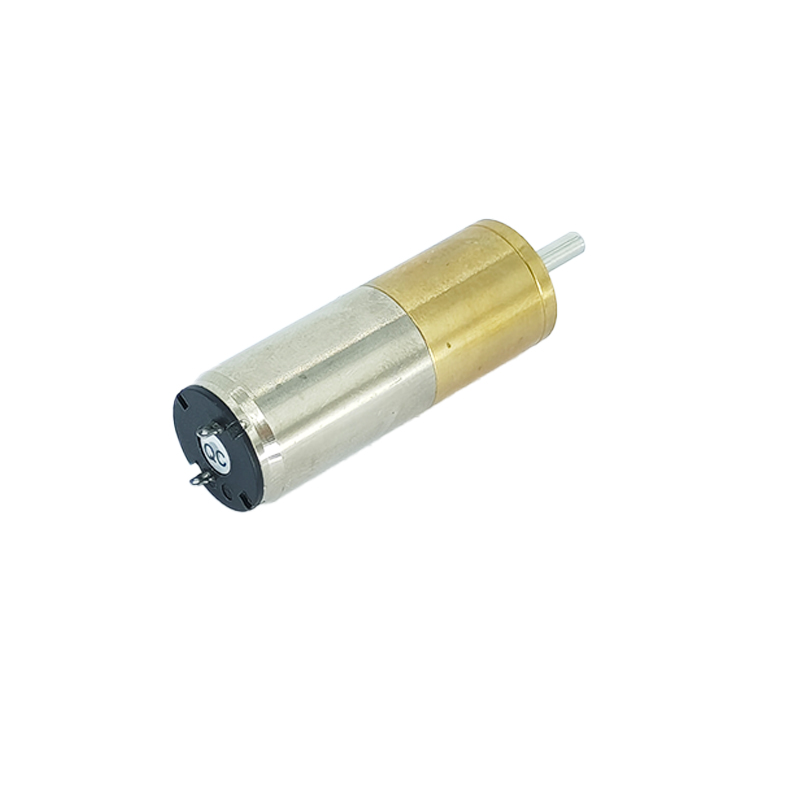

A hollow cup brushed motor, also known as a coreless brushed DC motor, is a type of electric motor characterized by its unique design and performance capabilities. Here’s a detailed description of what typically characterizes a hollow cup brushed motor:

1. Construction:

  - Coreless Design: Unlike traditional brushed DC motors that have an iron core in the armature, hollow cup motors have a rotor that lacks an iron core. Instead, they use a cylindrical or cup-shaped winding structure.

  - Winding: The rotor winding is typically made from thin, coiled wire wound around a hollow cylindrical form or cup-shaped structure. This design reduces inertia and mass, enhancing the motor's responsiveness and efficiency.

2. Rotor and Stator Configuration:

  - Rotor: Consists of a hollow cylindrical or cup-shaped structure with windings wound around it. The absence of an iron core reduces weight and inertia, enabling faster acceleration and deceleration.

  - Stator: Surrounds the rotor and includes a permanent magnet or electromagnet to create a magnetic field. The stator’s magnetic field interacts with the rotor’s windings to produce rotational motion.

3. Operation:

  - Brushed Commutation: Operates on the principle of brushed commutation, where electrical current is supplied through brushes and commutator segments to energize the rotor windings.

  - Brushes and Commutator: Brushes make physical contact with the commutator, a segmented ring connected to the rotor windings. As the rotor turns, the commutator segments switch the direction of current flow through the windings, generating continuous rotational movement.

4. Performance Characteristics:

  - High Power Density: Offers high power output relative to its size and weight due to the coreless design, making it suitable for applications where compact size and high efficiency are critical.

  - Low Inertia: Minimal rotor inertia enables rapid acceleration and deceleration, making hollow cup motors ideal for applications requiring precise and responsive motor control.

  - Smooth Operation: Coreless design reduces cogging torque and improves smoothness of rotation, contributing to quieter operation and reduced vibration compared to cored motors.

5. Applications:

  - Consumer Electronics: Used in small electronic devices such as digital cameras, drones, mobile phones, and portable medical devices where compact size, low weight, and energy efficiency are essential.

  - Robotics: Commonly employed in robotic applications for joint actuation, gripper mechanisms, and other motion control tasks requiring lightweight and precise motor operation.

  - Aerospace and UAVs: Utilized in unmanned aerial vehicles (UAVs), satellites, and aerospace equipment where weight savings and high reliability are critical factors.

  - Medical Devices: Found in medical equipment such as infusion pumps, robotic surgery systems, and prosthetic devices, benefiting from the motor's compact size and precise control capabilities.

6. Advantages:

  - Compact Size: Coreless design allows for a smaller motor footprint and reduced weight compared to traditional brushed motors.

  - Efficiency: Lower inertia and reduced internal resistance contribute to higher efficiency and energy savings during operation.

  - Reliability: Minimal mechanical wear due to the absence of an iron core and reduced friction between moving parts, resulting in longer service life and improved reliability.

Hollow cup brushed motors represent a specialized type of electric motor known for their compact size, high efficiency, and precise control capabilities. They are favored in applications demanding lightweight, reliable, and responsive motor performance across various industries, from consumer electronics to aerospace and medical sectors.
