Components and Operation of Plastic Pipe Extrusion Machines

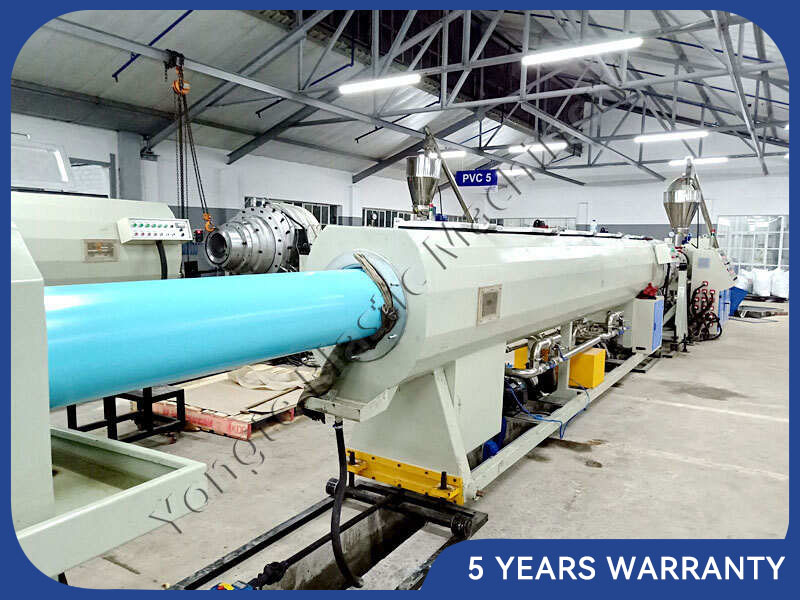

A plastic pipe extrusion machine is a specialized piece of equipment used in the manufacturing process of plastic pipes. Extrusion is a process where raw plastic material is melted and formed into a continuous shape by forcing it through a die. Here's an overview of the components and operation of a plastic pipe extrusion machine:

1. Raw Material Feeding: The process begins with feeding raw plastic material into the extruder. The material is typically supplied in the form of pellets or granules and may consist of various types of thermoplastic resins such as PVC (polyvinyl chloride), PE (polyethylene), PP (polypropylene), or ABS (acrylonitrile butadiene styrene).

2. Extrusion Process: The extruder is the main component of the machine responsible for melting and shaping the plastic material. Inside the extruder, the plastic material is heated and compressed by a rotating screw mechanism. As the material moves along the screw, it undergoes melting and becomes viscous.

3. Die and Sizing Tools: Once the plastic material reaches the end of the extruder, it is forced through a specially designed die that shapes it into the desired pipe profile. The die determines the dimensions and geometry of the pipe. Sizing tools, such as vacuum calibrators or water cooling tanks, are used to control the diameter and shape of the pipe as it exits the die.

4. Cooling and Solidification: After passing through the die, the hot plastic pipe undergoes cooling to solidify its shape. Cooling methods may include immersion in water baths, air cooling, or spray cooling systems, depending on the type of plastic material and the desired properties of the pipe.

5. Pulling and Cutting: Once the pipe has solidified, it is pulled away from the extrusion line by a set of caterpillar or belt haul-off units. These units provide controlled tension and speed to ensure uniformity and consistency in the pipe's dimensions. The pipe is then cut to the desired length using a cutting machine or saw.

6. Optional Additional Processes: Depending on the specific requirements of the application, additional processes may be integrated into the extrusion line. These processes may include pipe printing, embossing, perforation, or co-extrusion of multiple layers to enhance the pipe's properties or add functional features.

7. Quality Control and Inspection: Throughout the extrusion process, quality control measures are implemented to ensure that the produced pipes meet the required specifications and standards. This may involve monitoring parameters such as temperature, pressure, diameter, wall thickness, and surface finish.

8. Packaging and Storage: Once the pipes have been produced and inspected, they are packaged and prepared for shipment or storage. Depending on the application, pipes may be bundled, stacked, or wrapped for protection during transportation and handling.

Plastic pipe extrusion machines are used in various industries, including construction, agriculture, plumbing, and infrastructure development, to manufacture a wide range of plastic pipes for conveying fluids, gases, and solids. The flexibility and versatility of the extrusion process allow for the production of pipes with different sizes, shapes, and properties to meet diverse application requirements.
