Aspects associated with a Vacuum Calibration Water Tank

2024-02-29

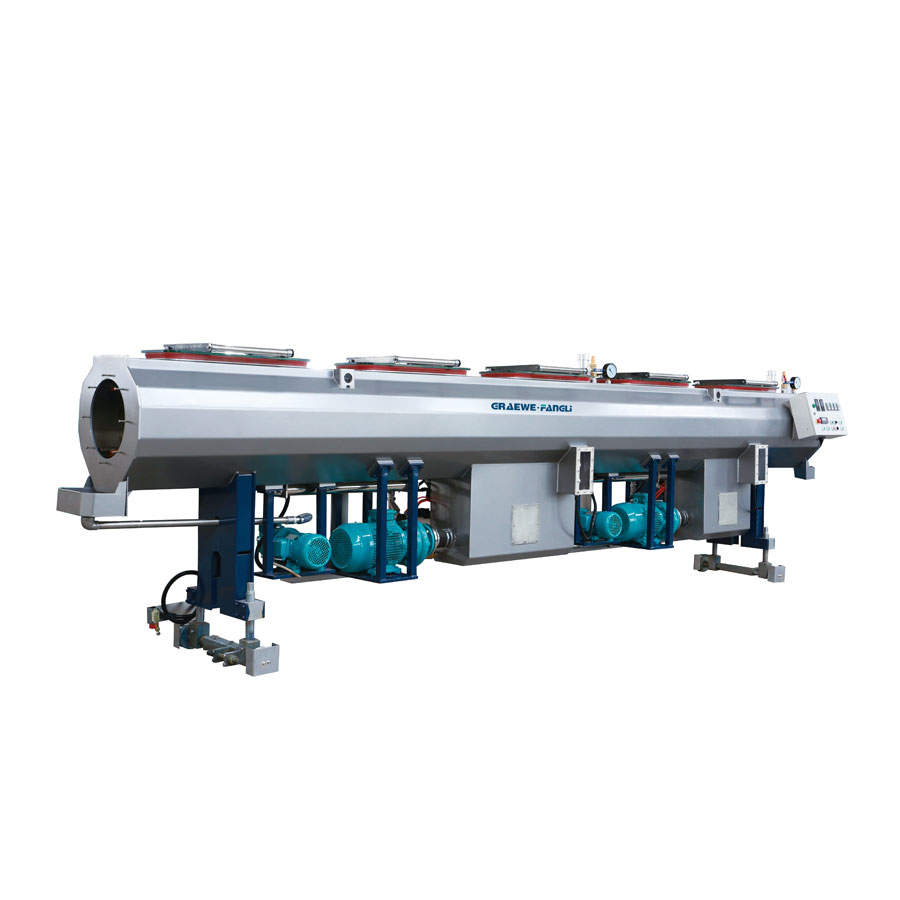

A Vacuum Calibration Water Tank is a crucial component in the plastic extrusion process, particularly in the production of plastic profiles, pipes, and other extruded products. It is used for cooling and setting the shape of the extruded material after it passes through the extrusion die. Here are key aspects associated with a Vacuum Calibration Water Tank:

1. Extrusion Process:

  - The Vacuum Calibration Water Tank is part of the plastic extrusion line, which involves melting plastic material and forming it into a specific shape through a die.

2. Cooling and Sizing:

  - The primary function of the water tank is to cool and size the extruded material. Cooling is crucial for setting the shape of the plastic product and ensuring dimensional stability.

3. Tank Design:

  - The tank is designed to accommodate the extruded profile or pipe. It typically has a water reservoir and adjustable features to control the water level.

4. Water Circulation System:

  - The tank includes a water circulation system that allows water to flow around the extruded material. This continuous water flow aids in the cooling process.

5. Vacuum System:

  - The tank is equipped with a vacuum system that creates a vacuum or negative pressure around the extruded material. The vacuum helps in achieving better contact between the material and the cooling tank, improving the cooling efficiency and setting the shape.

6. Adjustable Sizing:

  - The tank may have adjustable sizing mechanisms to control the dimensions of the extruded product. This is important for achieving the desired product specifications.

7. Material Compatibility:

  - The tank is designed to be compatible with various plastic materials commonly used in the extrusion process. Different materials may require specific cooling conditions.

8. Temperature Control:

  - Temperature control systems may be incorporated to regulate the temperature of the cooling water. Maintaining the right temperature is essential for the cooling process.

9. Conveyor System:

  - A conveyor system is often integrated into the water tank to support the extruded material as it passes through the cooling and sizing stages.

10. Adjustable Water Flow:

   - The water flow in the tank is adjustable to control the cooling rate and ensure uniform cooling across the entire extruded profile.

11. Monitoring and Control:

   - The tank may include monitoring and control systems to oversee parameters such as water temperature, flow rate, and sizing adjustments.

12. Material Handling:

   - The design of the tank takes into consideration the handling of the extruded material, ensuring it moves smoothly through the cooling and sizing process.

13. Durability and Corrosion Resistance:

   - Given the continuous exposure to water, the tank is typically made from materials that are durable and resistant to corrosion.

14. Accessibility for Maintenance:

   - Easy access points and design features are incorporated to facilitate maintenance and cleaning of the tank.

15. Integration with Extrusion Line:

   - The Vacuum Calibration Water Tank is seamlessly integrated into the overall extrusion line, working in conjunction with other components such as the extruder and downstream equipment.

The Vacuum Calibration Water Tank is an essential component in achieving precise and high-quality plastic extrusions by ensuring proper cooling, sizing, and setting of the extruded material. The design and features may vary based on the specific requirements of the extrusion process and the type of plastic products being manufactured.
