What is a Scotch Yoke Pneumatic Actuator, and how does it function?

What is a Scotch Yoke Pneumatic Actuator, and how does it function?

A Scotch Yoke Pneumatic Actuator is a type of mechanical device used to convert the linear motion of compressed air into rotational motion. It is commonly employed in industrial applications to control valves, dampers, and other mechanisms that require precise and reliable actuation.Function:The Sco......

Send Inquiry

Product Description

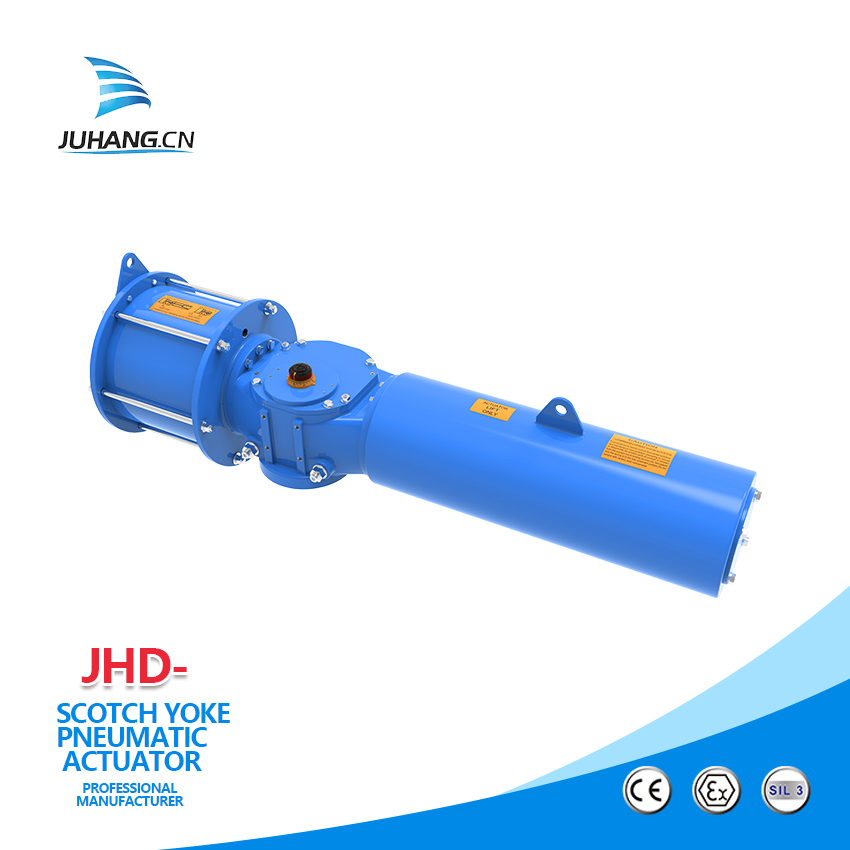

A Scotch Yoke Pneumatic Actuator is a type of mechanical device used to convert the linear motion of compressed air into rotational motion. It is commonly employed in industrial applications to control valves, dampers, and other mechanisms that require precise and reliable actuation.

Function:

The Scotch Yoke Pneumatic Actuator operates based on the principle of the "Scotch yoke mechanism." It consists of a piston or a sliding element attached to a yoke, which, in turn, is connected to a rotating shaft. As compressed air is supplied to the actuator, it enters a cylinder or chamber where the piston is housed. The air pressure drives the piston back and forth inside the cylinder.

The unique feature of the Scotch Yoke mechanism is that the connection between the piston and the yoke creates a sinusoidal motion, rather than a linear one. As the piston moves back and forth, the yoke's rotation follows a sinusoidal pattern, which translates the linear motion of the piston into rotational motion of the shaft.

When the compressed air is supplied to one side of the piston, it moves in one direction, causing the yoke to rotate the shaft in one direction. When the air is supplied to the other side of the piston, it moves in the opposite direction, causing the yoke to rotate the shaft in the opposite direction. This controlled rotational movement can be used to open or close valves, adjust dampers, or perform other mechanical functions in various industrial processes.

Advantages:

The Scotch Yoke Pneumatic Actuator offers several advantages, including:

1. Simple and robust design: The actuator has a relatively simple construction, which makes it durable and reliable for long-term use.

2. High torque output: The actuator can generate high torque levels, making it suitable for handling large valves or heavy loads.

3. Precise control: The sinusoidal motion of the yoke provides smooth and precise control over the rotational movement, allowing for accurate positioning and modulation.

4. Fail-safe options: Some Scotch Yoke Pneumatic Actuators come with spring-return options to ensure a fail-safe position in case of a loss of air pressure.

Applications:

Scotch Yoke Pneumatic Actuators are commonly used in various industries, including oil and gas, petrochemicals, power generation, water treatment, and more. They are particularly well-suited for applications requiring linear-to-rotary motion conversion and where precise control and high torque output are necessary.

It's worth noting that the operation and design of specific actuators might vary depending on the manufacturer and the intended application. Therefore, it's essential to refer to the manufacturer's documentation and specifications for a particular Scotch Yoke Pneumatic Actuator to understand its specific functionality and limitations.
